BJ-511F Semi-Automatic Plane Labeling Machine

Operation Video of BJ-511F Semi-Automatic Plane Labeling Machine

Semi-automatic plane labeling machine of BOJIN the model is BJ-511F, following is the basic information of the equipment, please have a see.

Product's Picture of BJ-511F Semi-Automatic Plane Labeling Machine

Product Details of BJ-511F Semi-Automatic Plane Labeling Machine

The Basic Purpose of BJ-511F Semi-Automatic Plane Labeling Machine

• Paste label by the way of sucking-sticking, to achieve all kinds of plane labeling. Such as cosmetics flat bottles, packing boxes, labeling on the plastic cap and so on.
• Change the covering mechanism, make it suitable to the uneven surface's labeling, such as concave flat, arc surface’s labeling and so on.
• Change the tool, make it applicable to a variety of irregular goods' labeling.
• Optional ribbon coding machine and ink-jet printer, to print batch NO. and the production date on the label at the same time, to achieve a coding – Labeling's integration.

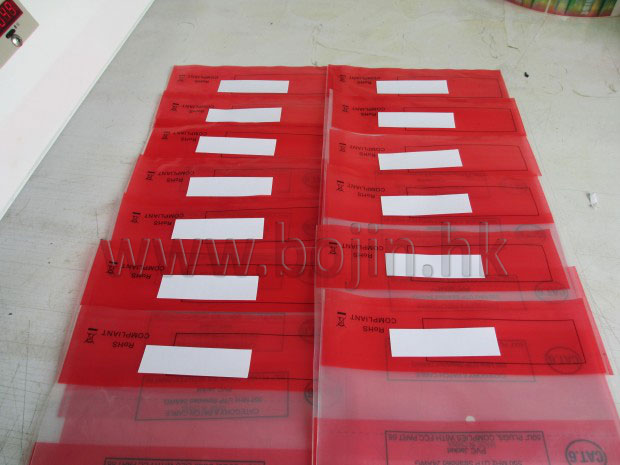

Label Samples of BJ-511F Semi-Automatic Plane Labeling Machine

Optional Features of BJ-511F Semi-Automatic Plane Labeling Machine

Reader: Read 2D codes, bar codes and other information, establish products'  database for products' traceability.
All-purpose Electric Eyes: General electric eyes cannot detect transparent labels, Leuze Electric Eye imported from Germany should be chose to be supportive.
Ink-jet printer: Can be equipped with the mainstream ink-jet printer in the market, print at specified location on the label, which can be combined with labeling machines perfectly.
Coder: Use thermal coder to print production date, expiration date, batch number and other information.

Whole View of BJ-511F Semi-Automatic Plane Labeling Machine

NO.	Mechanism’s Name	Mechanism’s Description
1	The Brake of Feed Tray	The prevention of over labeling
2	Feed Tray	Ready to put on label volumes
3	Rack
4	Shrapnel to Press the Label	Press the label to ensure the label’s tension
5	Roller	For label’s detour
6	Label Detecting Electric-eye	Detect the label
7	The Material Receiving Machine	Recycle the label’s backing sheet
8	‘T’Shape Handle	Fasten the drawing mechanism
9	Drawing Mechanism	By pulling the backing sheet, peel off the label, the degree of tightness can be adjusted
10	Electric Controlling Box	Used for the electric circuit configuration of the machine
11	Tool Table	Used to put on workpiece
12	Air Blowing Pipe	Hold up the label and transit it to the sucker successfully in the process of label peeling
13	Air Cylinder	Used to finish the action of labeling
14	Fine Adjustment Screw	Small adjustment for sucker and the height of workpiece
15	Film to Press the Label	Guarantee the tension of the label
16	Drawing Motor	Provide power to the label belt

Rear view of BJ-511F Semi-Automatic Plane Labeling Machine

1.Air Blowing Pipe 2.Pedal Interface 3.Standby Port 4. Standby Port 5.Air Pipe Interface 6.Barometer 7.Air Pressure Governor

Scope of BJ-511F Semi-Automatic Plane Labeling Machine

• Applicable Label: adhesive label, adhesive film, electronic supervision code, bar code, etc.
• Applicable Products: The products required to be labeled on the plane, cambered surface, circumferential surface, concave surface, convex surface or other surfaces.
• Industry: Widely used in cosmetics, food, toys, daily chemical, electronics, pharmaceutical and other industries;
• Application: The labeling of shampoo flat bottles, packing box’s labeling, bottle caps, plastic shell, etc.

Technical Parameters of BJ-511F Semi-Automatic Plane Labeling Machine

Parameter Name	Specific Parameter Values
Labeling Accuracy	± 0.5mm (except for products & labels’ error)
Labeling Speed	15 to 25 pcs / min (related to products’ size)
Applicable Products’ Size	Length: 20mm ~ 200mm; Width: 20mm ~ 150mm;Thick:0.2mm~120mm
Applicable Label’s Size	Length: 15mm ~ 200mm; Width: 20mm ~ 200mm
Machine’s Size	Approximately 850mm × 410mm × 720mm (length × width × height)
Power supply	220V/50HZ
Total Weight	Approximately 41Kg
Applicable label’s inner diameter	Ø76mm
Applicable label’s outer diameter	Ø 240mm
Voltage	220V
Air Pressure	0.4-0.6Mpa

Working Process of BJ-511F Semi-Automatic Plane Labeling Machine

• Core working principle: When the sensor detects the product or receives the signal sent from the pedal, the sucker which is sucking the label falls to label and covers the product, and then goes back to the original location to suck the next label and wait for the next label signal. The whole movements of the labeling have been finished.
• Procedure: Put the product -> Judge if product arrives (controlled by the detecting equipment or manually)-> Label and cover it(the device can achieve it automatically)->Remove the labeled products.

The following is the process of making label for a semi-automatic plane positioning machine.
(It can be sent directly to the label manufacturer for label production):

Note:

• Distance between each two labels is 2-4mm
• Use glassine paper
• Inner diameter of label roll: 76mm, outer diameter: less than 260mm

Producing Requirements:

• The distance between each two labels is 2-4mm;
• The labels’ backing paper is made from glassine material, because this paper has good toughness in order to prevent being pulled apart
• The inner diameter of label roll is 76mm, the outer diameter is less than 260mm, arranged in a single row.

The process of making label above should be combined with your products. The specific requirements please refer to the result of communication with our engineers!

Functional Features of BJ-511F Semi-Automatic Plane Labeling Machine

• Powerful features, can be used for many kinds of workpiece labeling, such as plane, arc surface, concave plane and irregular workpiece.
• Accurate when labeling, high stability, using PLC+ stepper motor drive to send label exactly; The feed tray that matched with brake function to make sure the tightness of the label belt, to ensure the accurate of label detection; The label goes around the correction mechanism to prevent the label moving from left to right.
• Strong and durable. Electric circuit and gas circuit are arranged separately. The gas circuit is matched with clean-up device to avoid the water in the air to damage the electrical equipment, lengthening its life; The whole machine is mainly made of stainless steel and high quality aluminium alloy.;
• Convenient adjustment, it has a device which can adjust the height to fit different heights’ need and need not to change the tools frequently.
• Beautiful shape. The bottom of the labeling machine is a electric box, equipped with stainless steel and high quality aluminium alloy, making it elegant and high-class;
• Equipped with two ways to label: manual and automatic, worker can achieve labeling- control through sensor or pedal; Setting manual or automatic control button, and the length of the label can be controlled optionally.
• Optional features and components: Thermal coding or ink jet, deliver products automatically, gather the products automatically(considered with products); special electric eye for labeling
