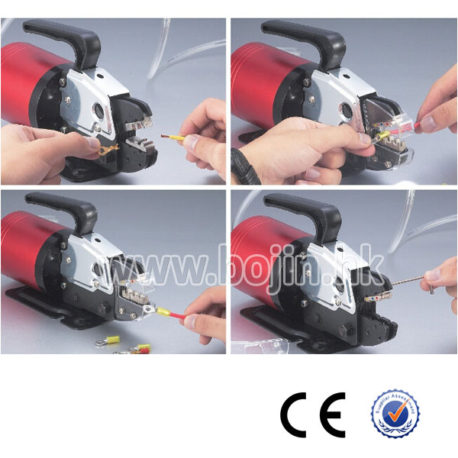

BJ-1200 Pneumatic Crimping Machine

Specification of BJ-1200 Pneumatic Crimping Machine

• Model: BJ-1200
• Crimping range: non-insulated terminals≤10mm²
• Pre-insulated terminals: ≤6mm²
• Tube-shaped terminal: ≤25mm²
• Output: 13.5kg
• Pressure range: 0.4-1MPa
• Dimension: 230x187x100mm
• Weight: 4KG

• Ferrules, 25, 35, 50mm
• Twin ferrules, 2×0.5, 1.0, 1.5, 2.0, 2.5, 4, 6, 10mm²
• Insulated O type or Y type terminals, 0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, 10.0mm²
• Males or females receptacles, 1.0, 2.0, 2.5, 4.0, 6.0mm²
• Contact pin for rectangular connector, 1.0, 2.0, 4.0mm²
