BJ-2000FT Fully Automatic Single Head Twisting Machine And Tinning Machine

Operation Video of BJ-2000FT Fully Automactic Single Head Twisting Machine And Tinning Machine

Fully automatic Single head wire cutting, stripping, twisting, tinning machine BJ-2000FT

• Automatic electric wire cutting, stripping and tinning processing machine, both end tin machine
• Automatic electric wire cutting stripping tinning processing machine

Machine features of BJ-2000FT Fully Automatic Single Head Twisting, Crimping And Tinning Machine

• ultra-compact design, small footprint, computer touch-screen Chinese menu operation, easy to use;
• the replacement process and the material very rapidly, high efficiency, high precision, speed, easy maintenance;
• The machine uses servo control: 5 sets of servo (Delta servo Mitsubishi servo);
• Pneumatic components: electromagnetic raft + cylinder (SMC), air pressure detecting SMC;
• Screw rails: TPI / THK;
• Color touch screen: Step Section (Taiwan);
• The entire computer numerical control debugging: blade size, cutting wire length, strip length, twisting strength speed, flux dip depth, the depth of wetting, are to achieve digital touch screen operation;
• Dimensions: 1200*1200*720
• Weight: 500kg
• Display: LCD display English language touch screen
• Power: AC220/50Hz
• Function: Wire cutting, stripping a single-ended, double-ended stripping, single-head crimping, twisting single-ended line, single-ended tinning
• Wire size: AWG32#-AWG16#
• Speed: 5500/h AWG32#-16#
• Cutting length: Max length 450mm
• Stripping length: 0.1mm-10mm
• Tinning length: 1mm-10mm (Changeable)
• Twisting length: 2mm-10mm (Changeable)

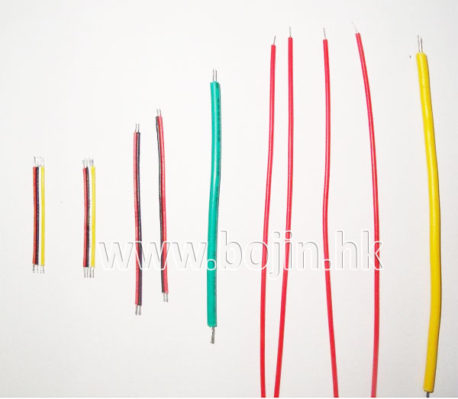

• Available wire: Electronic wire, high-temperature wire, etc.
• Twisting way: Digital Operation (motor drive mode)
• Detective function: Lack of wire, wire tie, pressure checking
• Air pressure: More than 6kg
