BJ-601E Eletrical Terminal Crimping Machine

BJ-601E Eletrical Terminal Crimping Machine

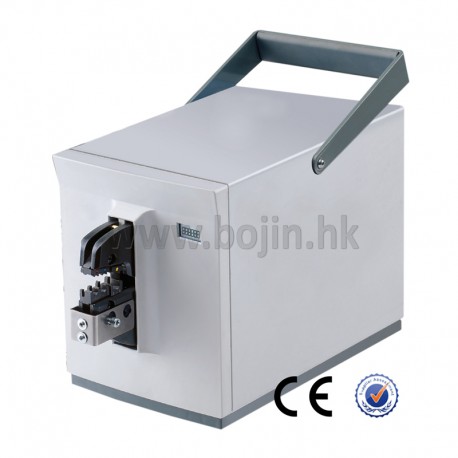

  • bj-601e-eletrical-terminal-crimping-machine.jpg

Operation Video of BJ-601E Electrical Terminal Crimping Machine

Specification of BJ-601E Electrical Terminal Crimping Machine

  • Crimping range: 0.5-16mm²
  • Output: 2.5T
  • Voltage range: AC 220V
  • Weight: 10kg
  • Overall dimension: 140*220*320mm

BJ-601E Eletrical Terminal Crimping Machine 1

Benefits of BJ-601E Electrical Terminal Crimping Machine

  • Automates your hand tools
  • Eliminates operator hand fatigue-foot pedal controls the unit
  • Low-cost alternative to automatic crimping machines
  • 10 time faster than manual crimping
  • Multi-function operations
  • Portable and lightweight
  • Small bench top footprint
BJ-601E Eletrical Terminal Crimping Machine 2
  • Connect foot pedal to the foot pedal joint
  • Connect the attaching plug to the power supply
  • Connect the grounding plug to the power supply
  • Turn on power switch
BJ-601E Eletrical Terminal Crimping Machine 3

Picture one
  • Screw off the Phillips screws
  • Remove the protection cover
Picture two
  • Embed the lower die
  • Screw on the Phillips screws
  • Embed the top die
  • Screw on the Phillips screws
Picture three
  • Embed the cable into the cable connector
  • Step down the foot pedal
  • Until crimping dies are closed completely
  • The crimping dies are automatically opened
  • Loosen the foot pedal
  • Take down the well-crimped cable joint
  • Pre-plug 2-in-one insulation and crimping dies
  • Coaxial crimping dies
  • Small brass crimping dies
  • Pre-Insulated Terminals crimping dies

BJ-601E Eletrical Terminal Crimping Machine 4
BJ-601E Eletrical Terminal Crimping Machine 5

Related Terminal Crimping Machine

Model Number BJ-601E BJ-602E BJ-603E BJ-604E
Crimping range 0.5-16mm² 0.5-16mm² 0.5-50mm² 0.08-120mm²
Output 2.5T 1.8T 2.5T 2.5T
Voltage range AC 220V AC 220V AC 220V AC 220V
Weight 10kg 6kg 6kg 6.5kg
