Operation Video of BJ-02K+S Flat Cable Stripping & Tearing Machine
Specification of BJ-02K+S Flat Cable Stripping & Tearing Machine
-
Drive way: Four Drivers
-
Power Supply: 220V / 50/60Hz
-
Power Rating: 350W
-
Available diameter: 0.1-8mm²
-
Stripping length: Head 0-50mm, End 0-50mm
-
Cutting Length: 01-150000mm(Determined on wire materials)
-
Cutting Tolerance: ±(0.2+0.0002×L)mm (L=Cutting Length)
-
The max width: 12P(mm²) / 80x25x2.5mm
-
Processing Capacity: 8000-3000wires/hour
-
Fitting Wire Material: flat cable, data cable, flat wire
-
Drive Way: Two Wheel Drive At The Same Time
-
Cut the middle of stripping: 13
-
Speed Adjustment: 1-6
-
Wire Diameter Adjustment: Automation
-
Rollers Press Adjustment: Setup
-
Stripping Press: Auto Rise
-
Wire Stripping Quality: Advance
-
Parameter Memory Function: None
-
Blade Material: Sungsten Steel
-
Mearsurement: 420*390*280mm
-
Net Weight: 36Kg
-
Remark: Stretcher is Selective

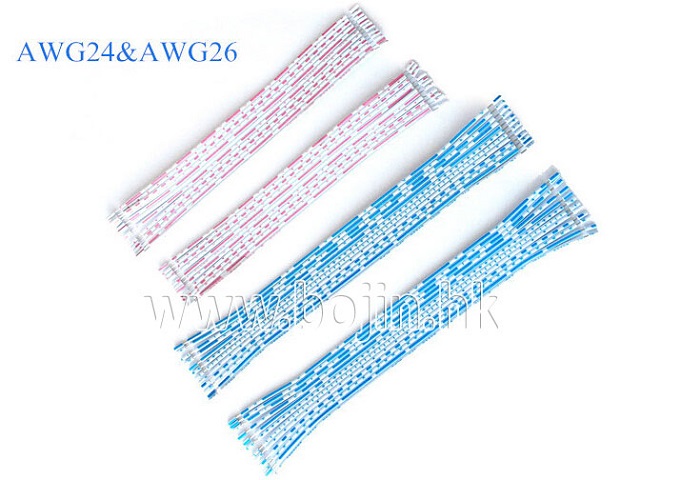

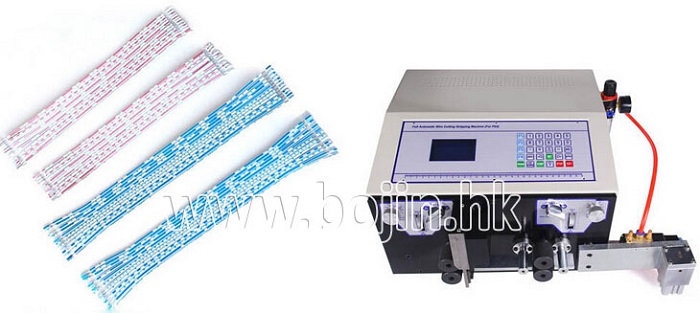

BJ-02K+S Flat Cable Stripping & Tearing Machine
BJ-02K+S Flat Cable Stripping & Tearing Machine
BJ-02K+S Flat Cable Stripping & Tearing Machine
BJ-02K+S Flat Cable Stripping & Tearing Machine
BJ-02K+S Flat Cable Stripping & Tearing Machine
BJ-02K+S Flat Cable Stripping & Tearing Machine
Related Wire stripping machines
|
Model Number
|
BJ-02B
|
BJ-02D
|
BJ-02F
|
BJ-02MAX
|
|
Wire size
|
0.1 – 2.5mm²
|
0.1 – 4.5mm²
|
0.2 – 8.0mm²
|
0.2 – 16mm²
|
|
Conduit diameter
|
Φ6
|
Φ6
|
Φ10
|
Φ13
|
|
Wire Gauge Range
|
AWG16 – AWG32
|
AWG12 – AWG32
|
AWG8 – AWG32
|
AWG5 – AWG30#
|
|
Drive Mode
|
Four-wheel drive
|
Four-wheel drive
|
Four-wheel drive
|
Four-wheel drive
|
|
Weight
|
35kg
|
35kg
|
35kg
|
35kg
|
