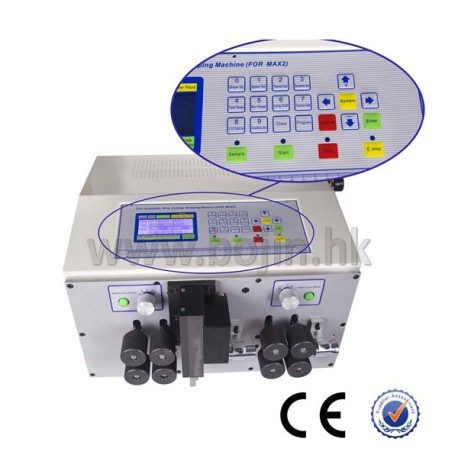

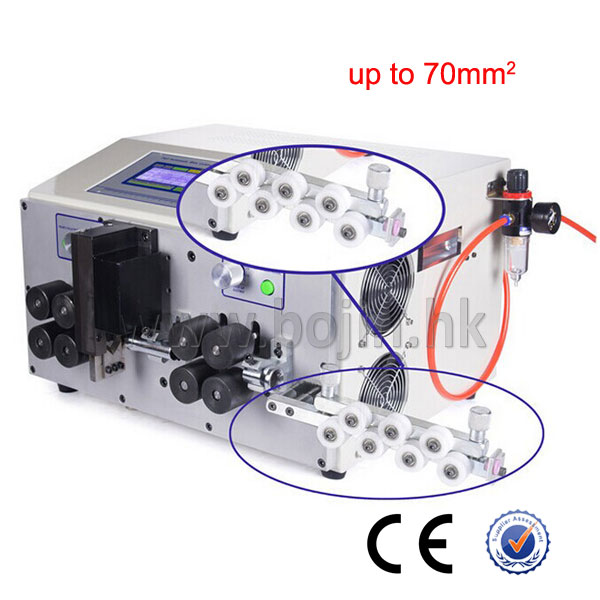

Operation Video of Big Cable Wire Cutting And Stripping Machine BJ-06MAX
Specification of Big Cable Wire Cutting And Stripping Machine BJ-06MAX
-
Model: BJ-06MAX EIGHT DRIVERS
-
Power: AC220/ 50HZ 110V/60HZ
-
Power: Rated 1000W
-
Display: Full English LCD Display
-
Cutting length: 1-100m
-
Stripping length: End of a thread 0-150 line tail 0-150
-
Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3
-
Cutting Tolerance: ±(0.002xL) mm or less
-
Cut the middle of stripping: 16
-

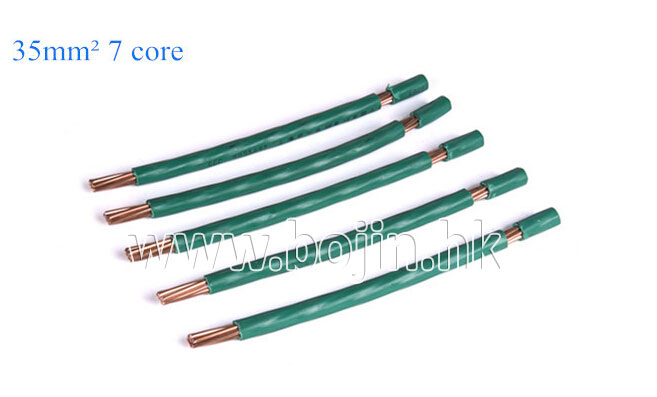

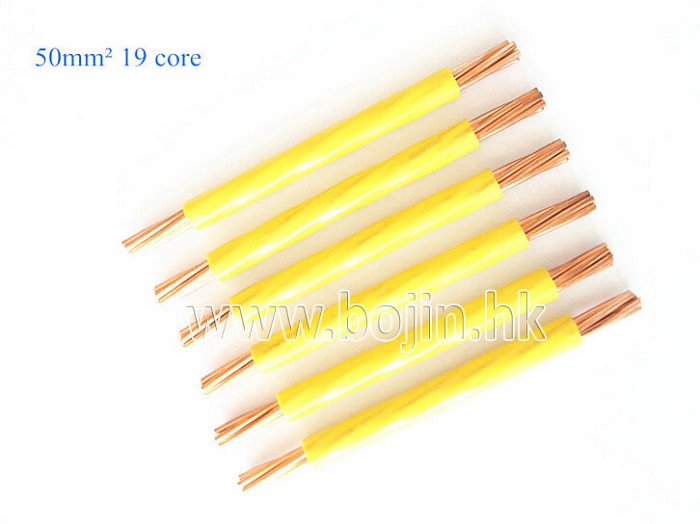

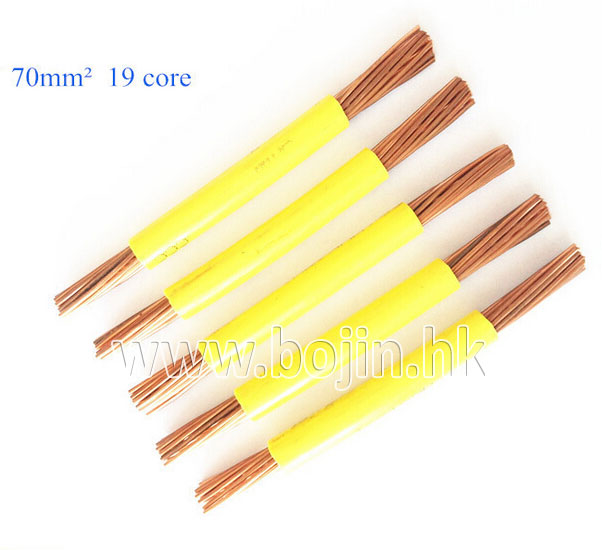

Core cross-section cut-line: 2– 50mm², if more than 50mm², please send your samples to us for testing, thanks.
-
Conduit diameter: Φ18
-
Appropriate wire stripping: PVC, Teflon, glass and wire
-
Blade Material: Hard tungsten steel
-
Stripper speed (Article / h): L=100mm, 2000~5000pcs/hour
-
Drive Mode: Eight drives
-
Package Size: 400*515*345mm
