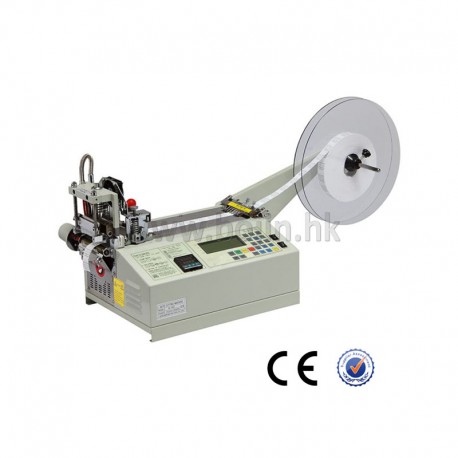

BJ-10 Belt Cutting Machine

BJ-10 Belt Cutting Machine

  • bj-10-belt-label-cutting-machine_1505266393.jpg

Video of BJ-10 Belt/Label Cutting Machine

Features of BJ-10 Belt Cutting Machine

  • Belt slitting machine adopts the electromechanical integrating technology, it automatically adjusts the length data through the input of computer program.
  • Automatically cutting various straps of different sizes such as braided tape, plastic tube, boot lace, plastic zipper, electrical wire, label, etc.
  • All the data will be saved automatically before putting off the switch. With features of high accuracy, high speed, easy to operate and stop working without materials.
  • It's an ideal machine for increasing of efficiency, improving quality and saving labor.

Character of BJ-10 Belt Cutting Machine

  • Compensation: It can recover the differences caused by the material flexibility dissimilarity.
  • Memory: It will save the current data automatically before the machine is closed.
  • Decimal point: Special decimal point function, raised the accuracy of the product consumedly.
  • Self-check: When a defect in the system, LD screen will display breakdown source automatically, in order to expel in the convenient check.
  • Automatic power failure: 1 hour after machine stopped working, the main driving system will break power supply automatically to promise the service life of the machine.
  • Automatic pause: Once the material uses up, it will stop a current work automatically.

Specifications And Index Of Bj-09l Cold Knife Tape Cutting Machine

  • Knife: Hot
  • CUT LENGTH (mm): 15-99999
  • MAX CUT WIDTH (mm): 100
  • SPEED (Piece/min): 120
  • WEIGHT (kg): 21.3/26
  • VOLTAGE: AC 110V / 220V 50-60Hz
  • Max. BLADE TEMP °C: 420°C
  • POWER: 0.50KW
  • LOADING RATE: 1
  • PACKAGE SIZE (L.W.H) mm: 410*525*430
  • Application: strip tapes, ribbon tape, bag band small webbing, etc.



BJ-10 Belt/Label Cutting Machine Samples


Model Number BJ-02 BJ-03 BJ-05 BJ-06
Available Width 5-70mm 5-110mm 5-80mm 5-100mm
Available Length 1-99999mm 15-99999mm 15-99999mm 15-99999mm
Knife Cold cutting Hot cutting Cold cutting Cold cutting
Speed 120pcs/min 120pcs/min 120pcs/min 120pcs/min
